SEG-P Properties: Posting

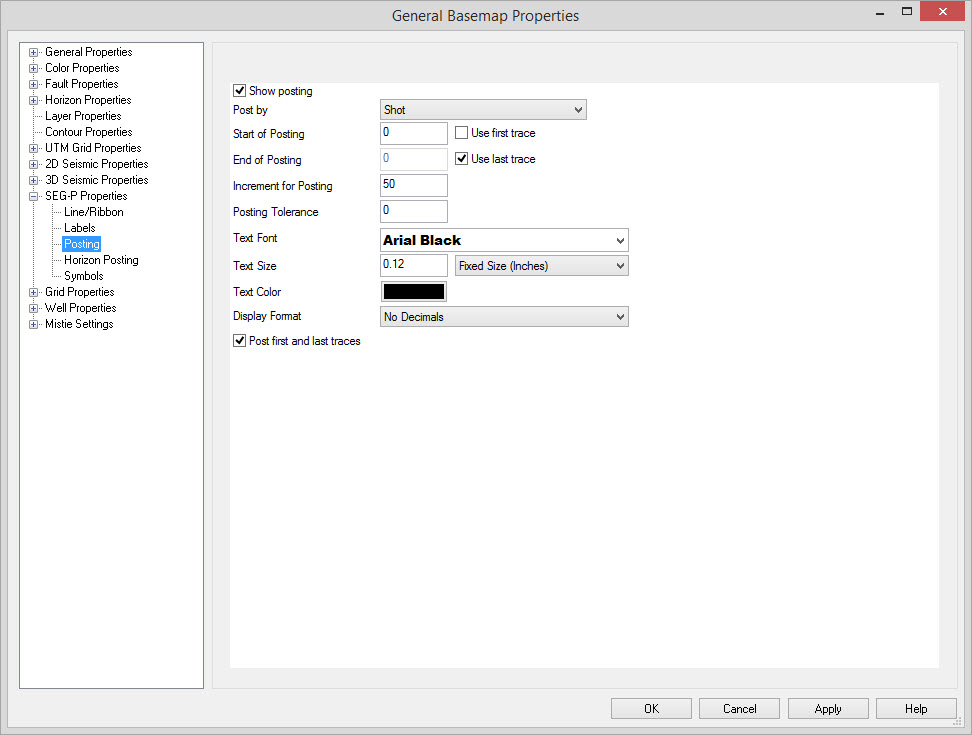

Use this page to set the posting labeling. To define the display
settings for the associated symbols, see the SEG-P Symbols page.
Enable Posting
Show Posting: Toggle on and off the posting
for SEG-P seismic lines.
Posting Parameters
Post By: Select
how the SEG-P seismic line
is posted. Shot, CDP, and trace offset are the available
selections.
Start of Posting, End of Posting, Increment for Posting: The starting, ending, and increment posting values. The value entered here should be appropriate to the selection in "Post By". Generally, using the first and last trace for posting is the best application for all lines. If using line-by-line properties, you can have values specific to that line.
Posting Tolerance: The allowed variance from the specified post by value where values will still post. For example, if the posting was set up to have values at shot 100 and the nearest shot is 100.05, the posting will still appear if the posting tolerance is more than .05.
Text Font, Text Size, Text Color: These define the text for posting. Select the font, specify the size, and select a color.
Display Format: Specify the number of decimal places to post here.
Post Horizon On First And Last Traces: This always posts the values present on the first and last traces of the line.
Start of Posting, End of Posting, Increment for Posting: The starting, ending, and increment posting values. The value entered here should be appropriate to the selection in "Post By". Generally, using the first and last trace for posting is the best application for all lines. If using line-by-line properties, you can have values specific to that line.
Posting Tolerance: The allowed variance from the specified post by value where values will still post. For example, if the posting was set up to have values at shot 100 and the nearest shot is 100.05, the posting will still appear if the posting tolerance is more than .05.
Text Font, Text Size, Text Color: These define the text for posting. Select the font, specify the size, and select a color.
Display Format: Specify the number of decimal places to post here.
Post Horizon On First And Last Traces: This always posts the values present on the first and last traces of the line.
Note: Fixed sized objects will remain the same regardless of the map scale. Variable sized objects will change size with the map scale.
